 Netmate II EXT Extended UPS Network Monitor

·Application Fields

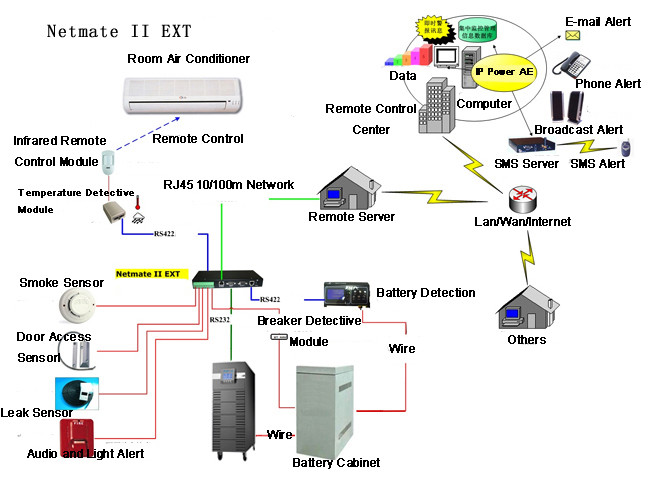

Netmate II EXT is applied for the network centralized monitoring management of small power machine room UPS resources, battery pack and its surrounding environmental conditions. It provides monitoring on temperature, humidity, the capacity of USP battery, water-leak and smoke contact. It also controls the local alarm, room air conditioner, and active the protection device.

·System integrated application:

The open software interfaces (SNMP, OPC, etc.) facilitate the seamless integration with third-party software.

·Features

■Networking Method: Can be connected by LAN, WAN, Internet, ADSL, wireless Ethernet, E1;
■Different authorizations make sure the security, confidentiality and reliability;
■Built-in optimized IP Power protocol can guarantee the real-time data collection while fully using the network;
■Can be configured by Telnet, Terminal, WWW and other types of management. It supports network upgrade and can lower the difficulty of maintenance and increase the efficiency of maintenance;
■Built-in real-time system clock can set the UPS scheduled on/off, scheduled discharge of batteries and so on;
■Compatible with most domestic brands of UPS;

·Technical Specifications

■Supplied by 12V DC;
■Two RS232 for communication with UPS;
■One RS422/485 communication interface can be cascaded the Modbus bus communication interfaces (for connecting the intelligent temperature and humidity detection module and the battery volume measurer, etc.);
■4-way photoelectric isolated main way interface inputs (0-5V TTL);
■2-way photoelectric isolated relay remote output (12VDC/1A);
■One 10/100M Ethernet interface (physical interface: RJ-45 socket);
■Built-in complete TCP/IP network module, supporting HTTP, SNMP, SMTP, SNTP, DHCP, DNS and other network protocols;

■It can conduct network monitoring management for remote network’s UPS power resources, UPS battery pack and the temperature and humidity. It especially creates a powerful Web Server management function module, which can let the users conduct real-time status inquire, basic information management, remote operation and management, setup of various factors, user’s management, inquiry of historical data and other functions through Web explorer and can send alarm SMS or E-mail to the users or administrators;
■A certain length of historical event and data can be recorded on the adapter;

■It can be upgraded online and can directly monitor the software upgrade at the remote management center;
