Tower

Position:Home > Products > Tower > Spower Series [100~500KVA]

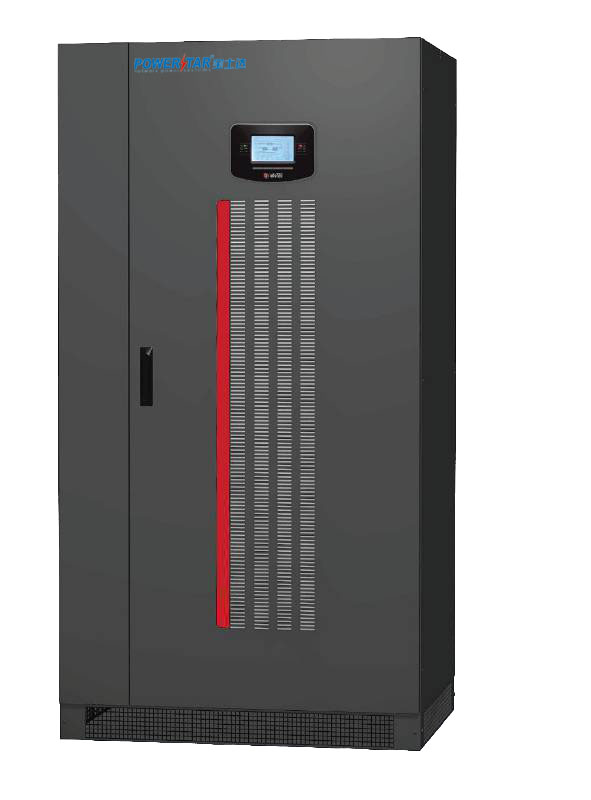

 Spower Series




·Description

SPower UPS offers three phases power protection for large and medium key systems of 100KVA-300KVA. The double conversion online technology, the advanced IGBT power modules, invertering with SPWM and intelligent multi-mode battery management guarantee the stable pure sine wave output and 4 sets working in parallel. Clients may check operating status and historical data of UPS on PC via R232. Unattended and remote control management are available by SNMP and related software. Spower provide reliable protection for data processing centers, server systems, communications systems, and sophisticated equipment in telecommunications, finance, securities, insurance, taxation, transportation, medical, business and other fields. With the increased performance and reliability, SPower UPS is your best choice.

·Features

■The design of online double conversion topological structure provides best power;

■Standard isolation transformer;

■Powerful overload performance, maintain 600/10/1min when overload at 110%/125%/150%;

■Dual DSP control technology based on digitalization improved availability and reliability;

■IGBT technology ensures THD <5%;

■Manual maintenance bypass ensured high reliability and low maintenance;

■Parallel capacity increases total power capacity by using multiple UPSs simultaneously;

■Parallel redundant provides power to connected equipment with multiple UPSs to increase system redundancy;

■Smart fan speed control;

■Advanced ABM technology maximizes battery performance, life, and reliability through smart and precise charging;

■LCD displays real-time status accurately;

■Remote control and sending text messages and emails on internet/intranet through SNMP card and related software on Windows2000/NT/XP/VISTA/7, Unix, Linux;


·Technical Specifications

Model
S100
S120
S160
S200
S250
S300
S400
S500
UPS Capacity
100KVA
120KVA
160KVA
200KVA
250KVA
300KVA
400KVA
500KVA
Voltage
380VAC(3phase+N)
Input
Voltage
380V±20% (Three phase and four wire)
Frequency
50/60Hz automatic recognition
Frequency range
±2% (Optional±1%~±5% Front panel Settings)
Power Factor
>0.99
Current distortion
<3%
Input current
141A
169A
226A
281A
352A
423A
564A
702A
Soft start
0~100% 10 seconds
Standard function
1.statics+ service bypass by hand;2.feedback guard;3. independent bypass
Bypass
Voltage
380VAC(3phase+N)
Voltage range
±15% (Optional±10%~±25% front panel settings)
Frequency
50/60 Hz (automatic recognition)
Frequency range
±2% (Optional±1%~±5% front panel settings)
Output
Voltage
380VAC(3phase+N)
Frequency
50/60Hz(automatic recognition)
Frequency tracking range
±0.5,±1,±1.5,±2Hz adjustable
Phase voltage setting
200~244 V (control panel)
Waveform distortion
Linear load <1%;Nonlinear load <3%
Crest factor
3:1
Battery mode frequency stability
±0.05%
Waveform
Sine wave
Overload
115%/125%/150% overload can keep 60minute/10 minute /1 minute
MTBF(system)
≥300000 hours
Battery
Type
Sealed maintenance free lead acid battery
Charging current
0.2A x C10
System
voltage stability
Static ± 1%; transient 5% ± (0~100% step load)
Steady state response time
In 20 milliseconds, restored to ± 1% output voltage steady state value
Phase transfer
With balanced load in 120 °± 1 °; with 100% unbalanced load in 120 °± 1 °
Phase voltage symmetry
With balanced load ± 1%; unbalanced load 100% ± 2%
Operating Environment
Temperature
0~40℃
Store temperature
-25℃~55℃
Relative Humidity
0~95%non-condensing humidity
Elevation
Normal when <1000m; 1% off every another 100m; Max 4000m
Noise (dB)
60~65
70~72dB
70~72dB
Communication System
Communication Interface
Double RS232 remote interface + 2 communication interface slot
Remote signaling
Dry contact (optional)
Remote Control
EPO and bypass(optional)
Standard
Safety standard
IEC/EN62040-1
EMC
IEC/EN62040-2
Produce
IEC/EN62040-3
Physical characteristics
Color
dark grey RAL7016
Option
1. Harmonic suppression filter; 2. Eight sets parallel module; 3. Input isolation transformer; 4. SNMP adapter
Net Weight((kg)
656
700
800
910
1000
1400
1700
2100
Size (W*D*H,mm)
1900*800*850
1900*1000*850
1900*1500*1000
1900*2100*1000


 Products shall be subject to any changes without additional notices. The pictures are for reference only. Please adhere to the original products in case of any mistake!
?
